SKY300042-04 LEOPARD V2 1/10 Brushless combo: Esc, 12,0T motor & Prog. Card SkyRc

109,00

Esaurito

Lascia il tuo indirizzo email qui sotto per essere informato quando il prodotto tornerà disponibile
Categoria:

Descrizione

SPEDIZIONE GRATIS

SKY300042-04 LEOPARD V2 1/10 Brushless combo: Esc, 12,0T motor & Prog. Card SkyRc

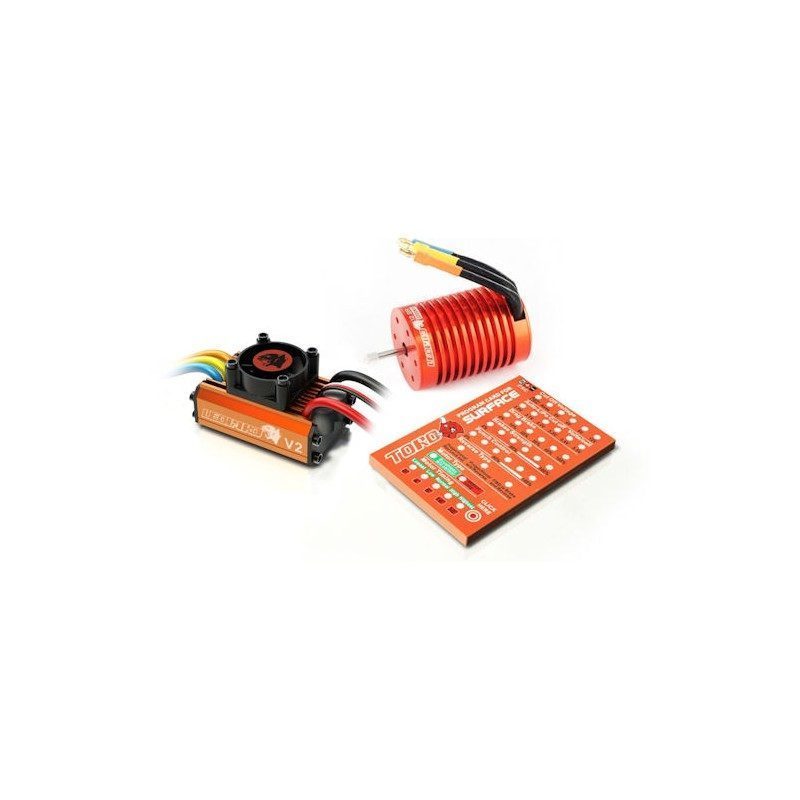

Complete power set for 1:10 RC Cars with a Leopard 60A ESC, a Leopard 380 12.0T brushless motor and a programming card.

Leopard 60A ESC is high performance 1/10 Scale Brushless Motor Electronic Speed Control. The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.

The Leopard 380 12.0T is design for the contoler. Kv 3300 and max power 550 Watts !

And with the programming card, it have never been so easy to make the settings for your car.

Specifications

Leopard 60A ESC

Controls, Leopard 60A ESC V2 Fwd/Brk or Fwd/Bra/Rev

Input Power (Cells) 2-3S LiPo,4-8S NiCd/NiMh

On Resistance, Brushless 0.001 Ohms per phase

Continuous/Burst Current 60Amp/90Amp

Linear BEC 5V 2Amp

Input Power (Cells) Motor Limits

2S LiPo On Road:≥9.0T Off Road:≥10.0T

3S LiPo On Road:≥10.0T Off Road:≥13.0T

Thermal Overload Protection Yes

Dimensions(L*W*H) 51.6*30*27.4mm(2.03*1.18*1.08in)

Weight(With wires) 78g(2.75oz)

Leopard 380 12.0T brushless motor :

Turns 12T
Max current 35 A
KV value 3300KV
Resistance (Ω) 0.0221Ω
Poles 2P
Battery range 1-3S
Diameter 36mm
Operation Temperature /
Motor length 50mm
Max Temperature 150°
Extend shaft diameter 3.175mm
Suitable car scale 1/10
Length of extend shaft 15mm
Suitable ESC 35A or higher
Weight 168g
Connector Type 3.5mm

Data sheet

Manufacturer : SkyRC
